28AWG External SAS Cable

Product Features

· Transmission rate 12Gbps

· Meet SAS3.0 specification

· Low power

· Differential impedance 100ohms

· Self lock design

· EMI radiation suppression design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

·

Data/Communications

SFF-8644

Series:HD Mini SAS

· Cable Length:1.0-7.0 Meters

· Wire Size:28AWG, Tinned Copper, OD:7.8MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

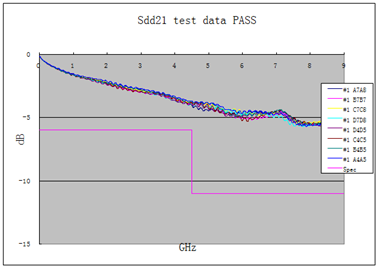

. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

External 4x Mini-SAS HD Cable from Hisetec High Speed Interconnects Guaranteed SAS-III drive performance at 6.0 Gbps & 12.0 Gbps data rates, SFF-8644 (4x HD Mini-SAS) to SFF-8644 (4x HD Mini-SAS) connectors Universal key 4x HD Mini-SAS connectors feature pull-to-release lanyard 28 AWG Twinaxial SKEWCLEAR 8-pair high-bandwidth low-skew wire Ideal external cabling solution for connecting two HD Mini-SAS devices Zinc Die-Cast connector housings for excellent durability & EMI resistance Precision matched impedance design (100 Ohm +/- 20%) Mating;
